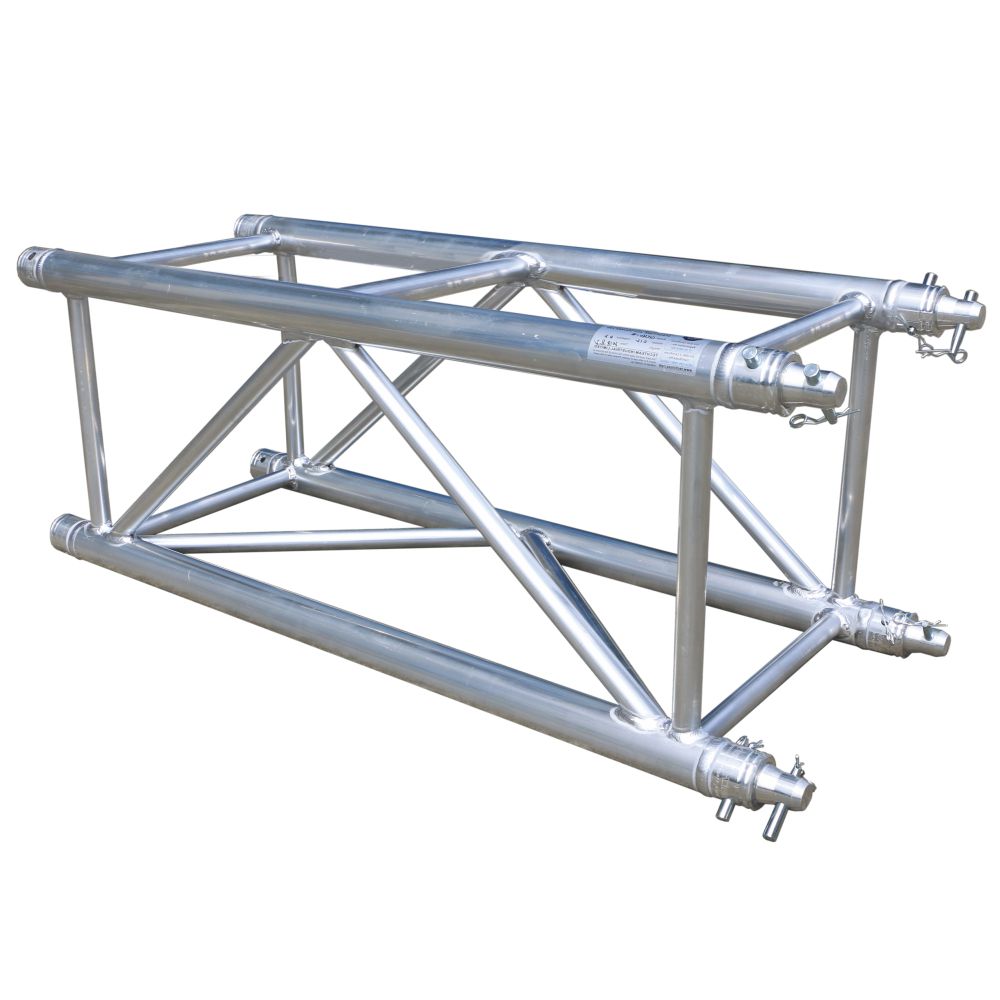

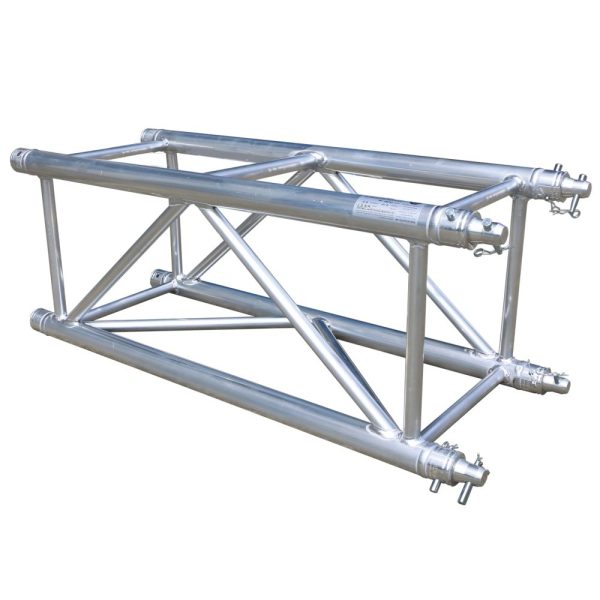

D40H-Q Series (390×390,4T,Side Ladder)

SQUARE 400 TRUSS

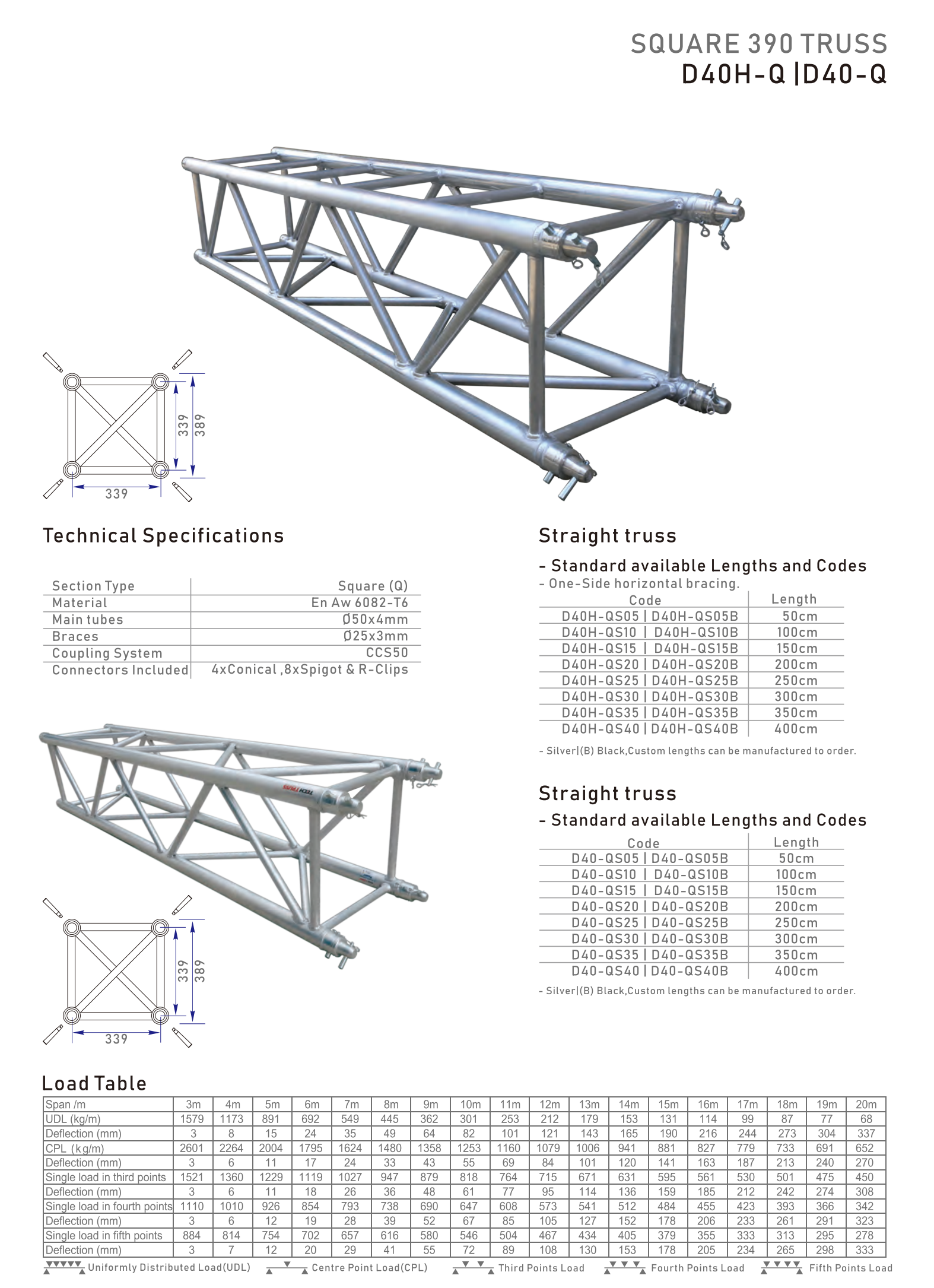

D40H-Q Series

• Section Type: 390 Square(Q)
  Section Size: 390x390mm, Side Ladder
  Standard Available Lengths: 0.5m-4m
  Material: En AW 6082-T6
  Main Tubes: Ø50x4mm
  Braces: Ø25x3mm
  Coupling Systems: CCS50
  Connectors Included: 4xConical, 8xPins & R-Clips
