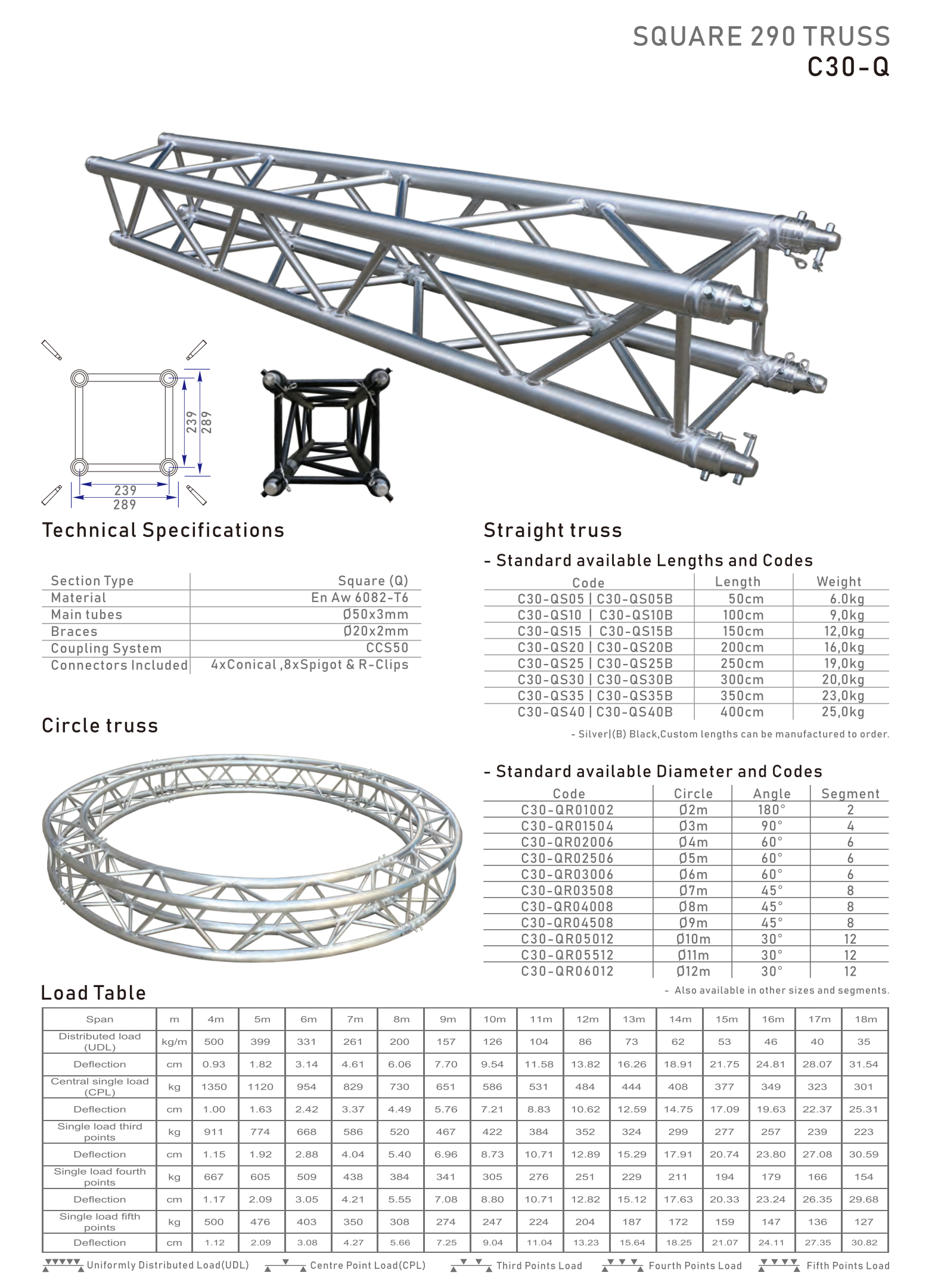

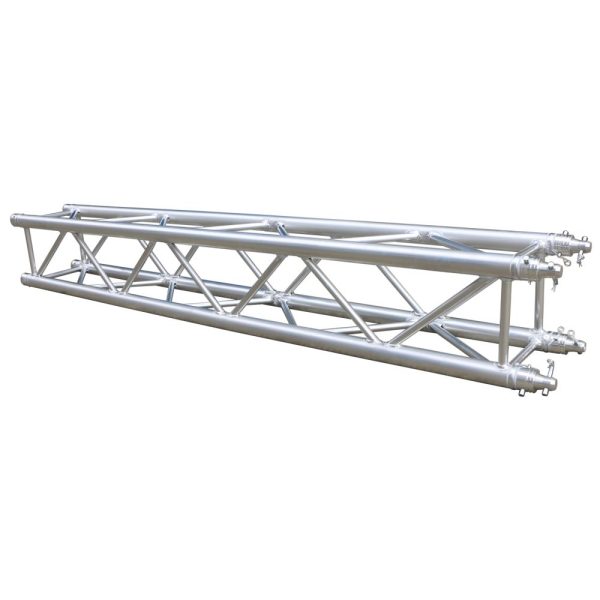

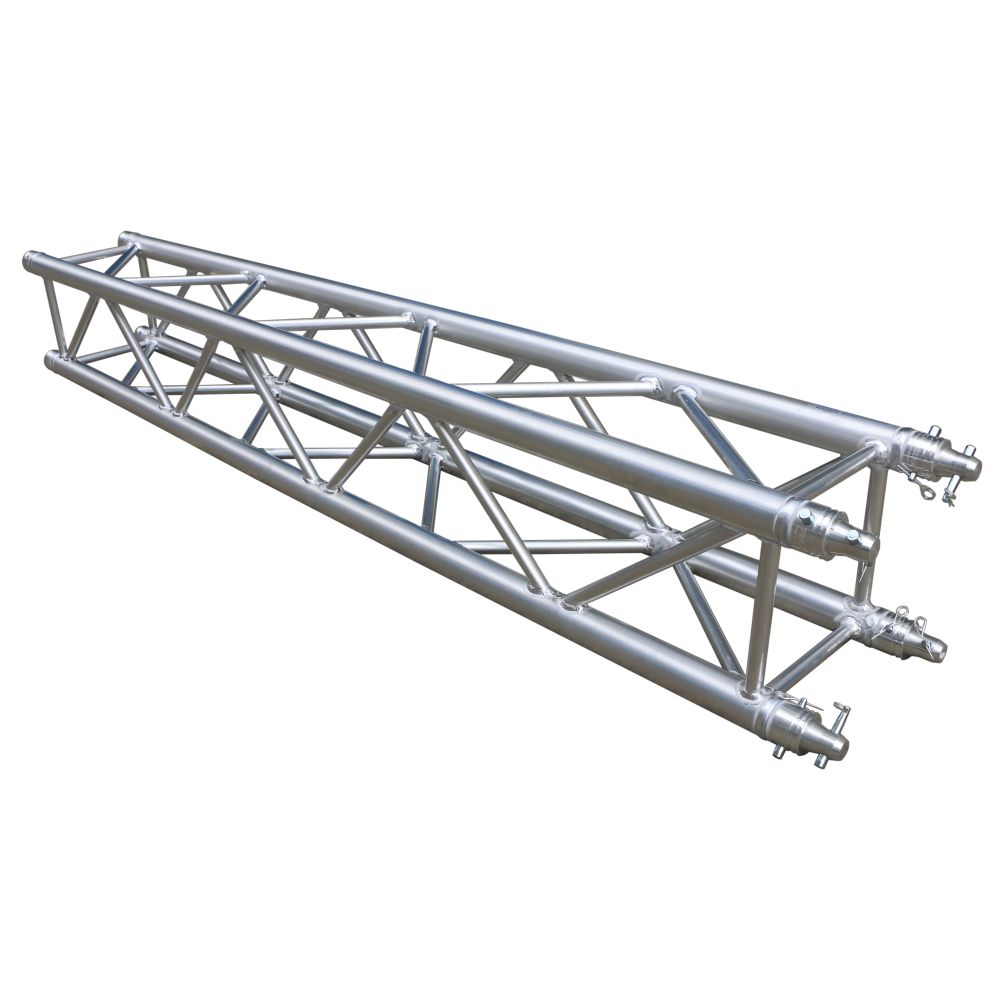

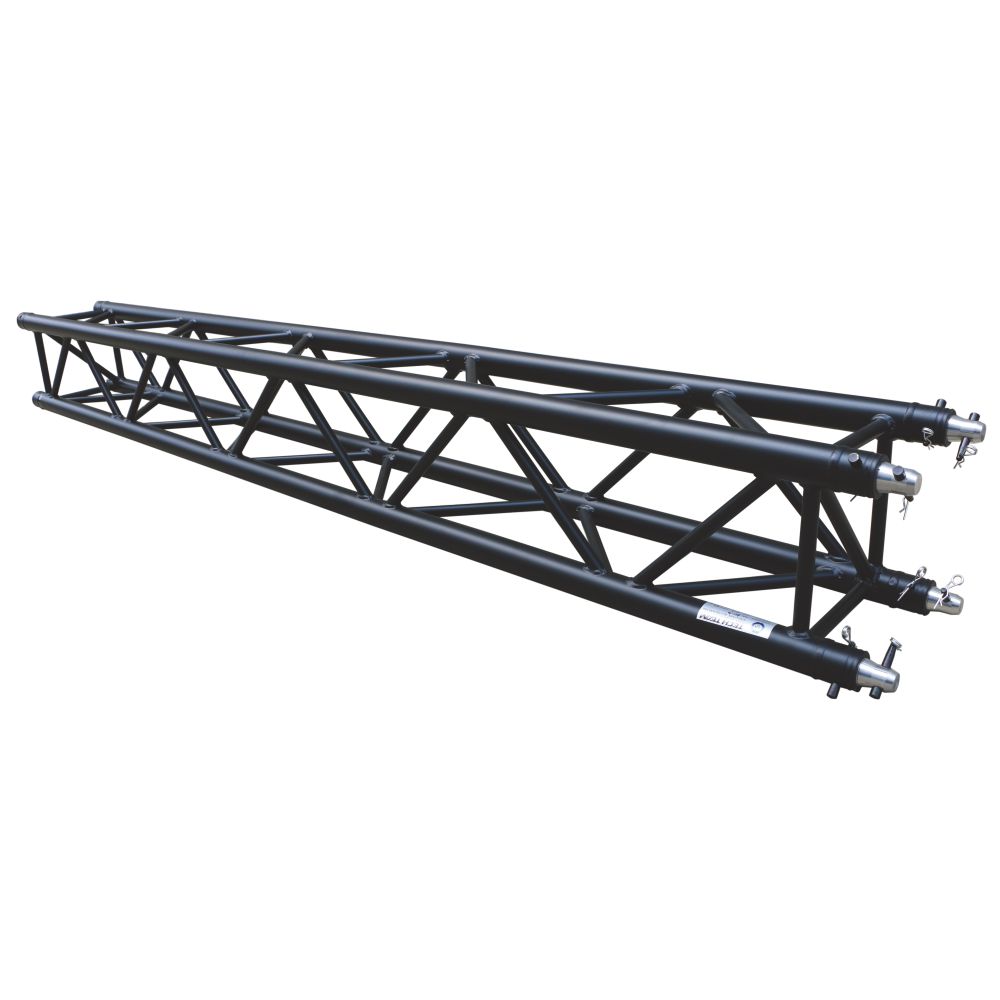

C30-Q Series (290×290,3T)

SQUARE 290 TRUSS
C30-Q Series

• Section Type: 290 Square(Q)
  Section Size: 290x290mm
  Standard Available Lengths: 0.5m-4m
  Material: En AW 6082-T6
  Main Tubes: Ø50x3mm
  Braces: Ø20x2mm
  Coupling Systems: CCS50
  Connectors Included: 4xConical, 8xPins & R-Clips
